Overview

Fire Opal is a software package that makes it simple for anyone to achieve meaningful results from quantum computers. Using AI-driven error suppression, Fire Opal improves the success of algorithms by thousands of times and enables you to successfully scale to large problem sizes, without even having to worry about the details of quantum circuits. At the same time, reaching the correct answer takes fewer shots and requires no overhead, meaning that you save on compute cost. For an in-depth explanation of Fire Opal’s benefits and capabilities, check out the Fire Opal overview. This tutorial will run through the steps to set up Fire Opal on the qBraid Lab platform and use it to run a Bernstein-Vazirani circuit. After completion, you will have demonstrated Fire Opal’s benefits by comparing the success probabilities of executing the circuit with both Fire Opal and Qiskit. Click below to clone the qbraid-lab-demo repository into your qBraid Lab, and then open qbraid_lab > fire_opal > get-started.ipynb to follow along with the code examples in this tutorial.

​
Setup

​
1. Sign up for Q-CTRL account

You will need to sign up for a Q-CTRL account to run the Fire Opal package.

​
2. Install the Fire Opal Environment in qBraid Lab

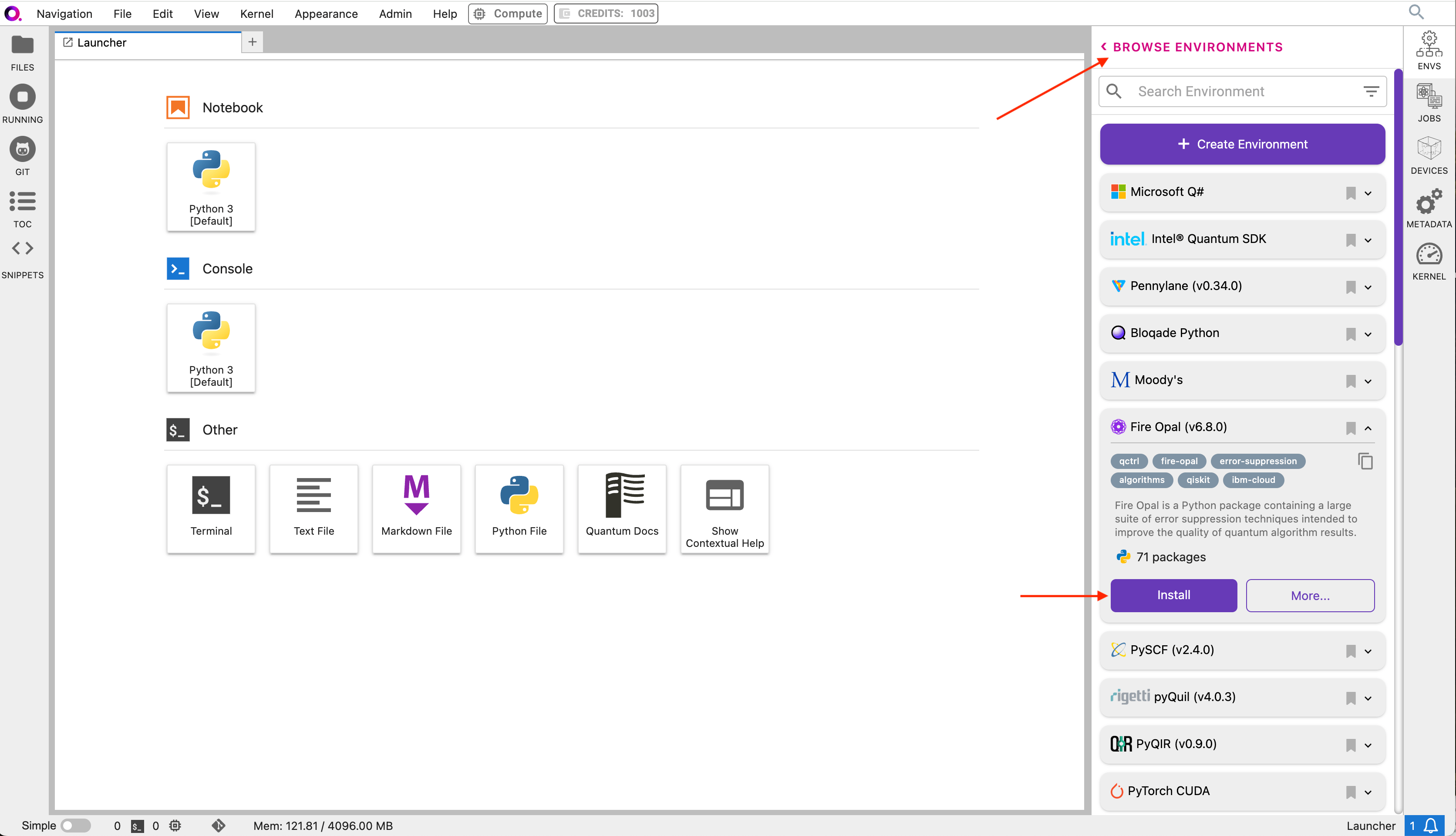

2a. In the Environment Manager sidebar, click Add to view the environments available to install. 2b. Choose the Fire Opal environment, expand its panel, and click Install.
fire opal install

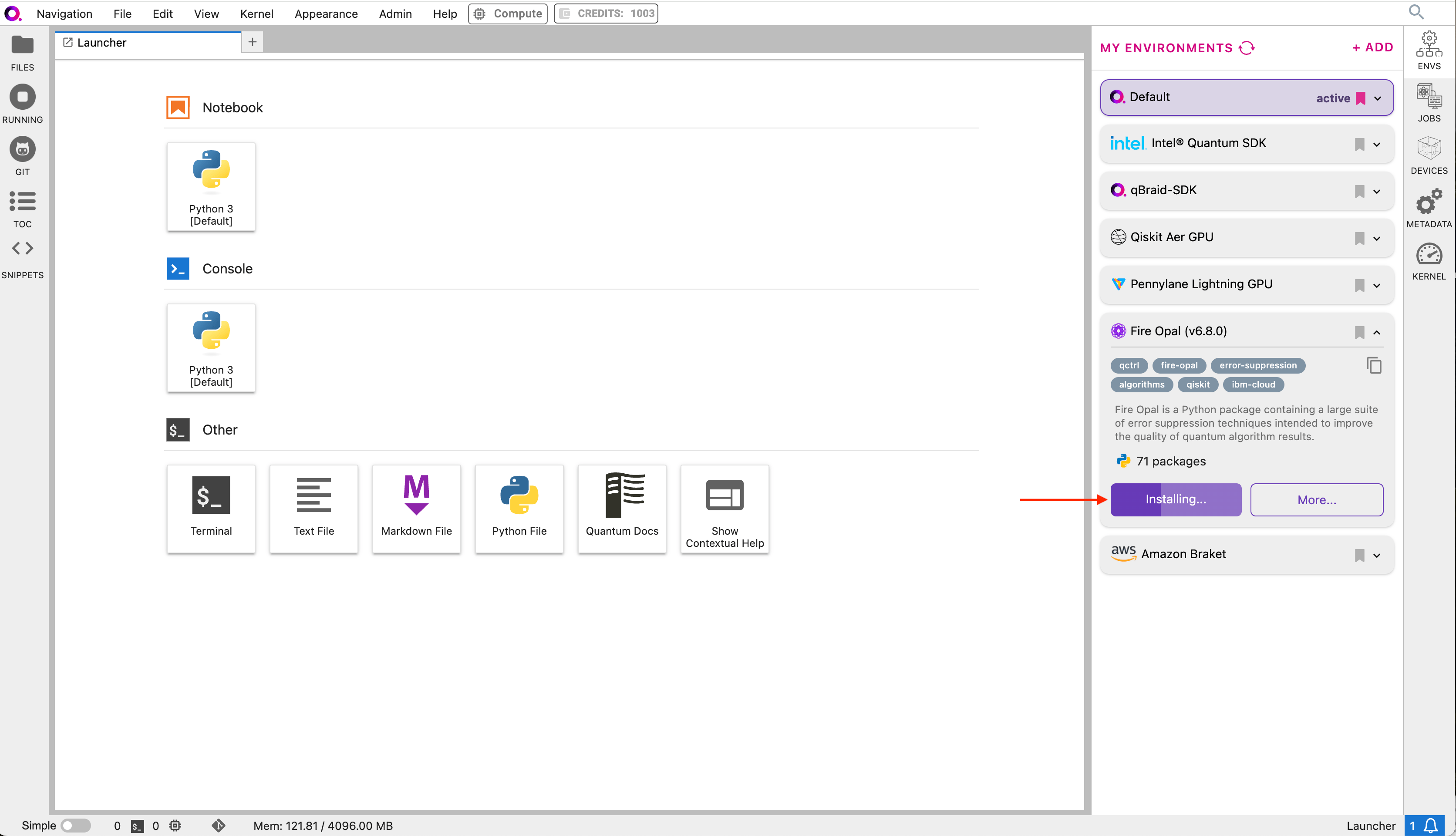

2c. Once the installation has started, the panel is moved to the My Environments tab. Click Browse Environments to return to the My Environments tab and view its progress.
fire opal installing

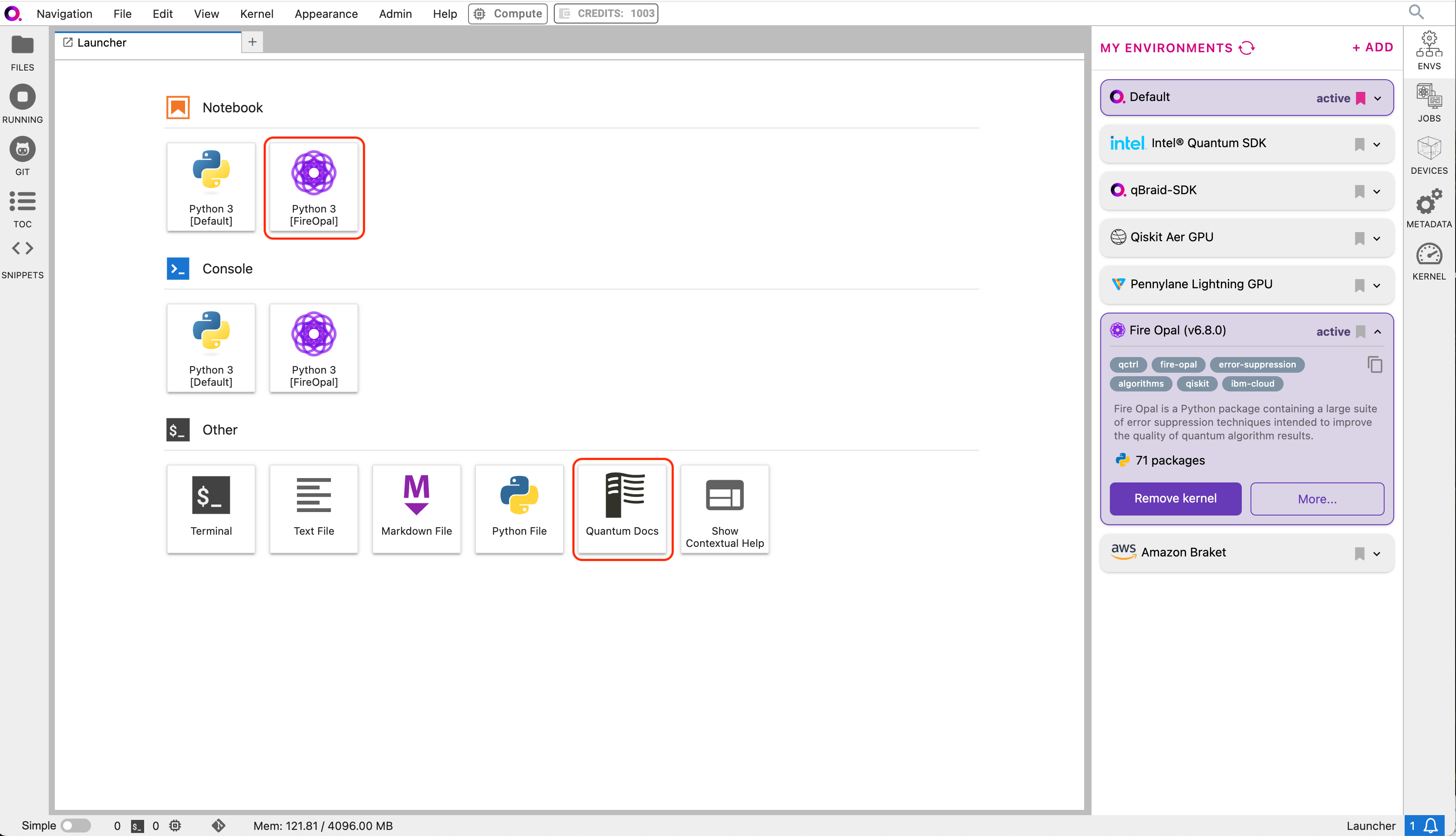

2d. When the installation is complete, the environment panel’s action button will switch from Installing… to Add Kernel. Click Add Kernel and open a new notebook to beginning coding with the Fire Opal environment. You can also click the Quantum Docs icon to browse the integrated Fire Opal documentation.
fire opal activated
2e. In the new notebook, make sure that your ipykernel (top-right) is set to Python 3 [FireOpal] (see switch notebook kernel). Then, verify that the Fire Opal environment is configured correctly by running the following code in the first cell:
import fireopal
import qiskit
from qiskit_ibm_runtime import QiskitRuntimeService
import matplotlib.pyplot as plt
import os

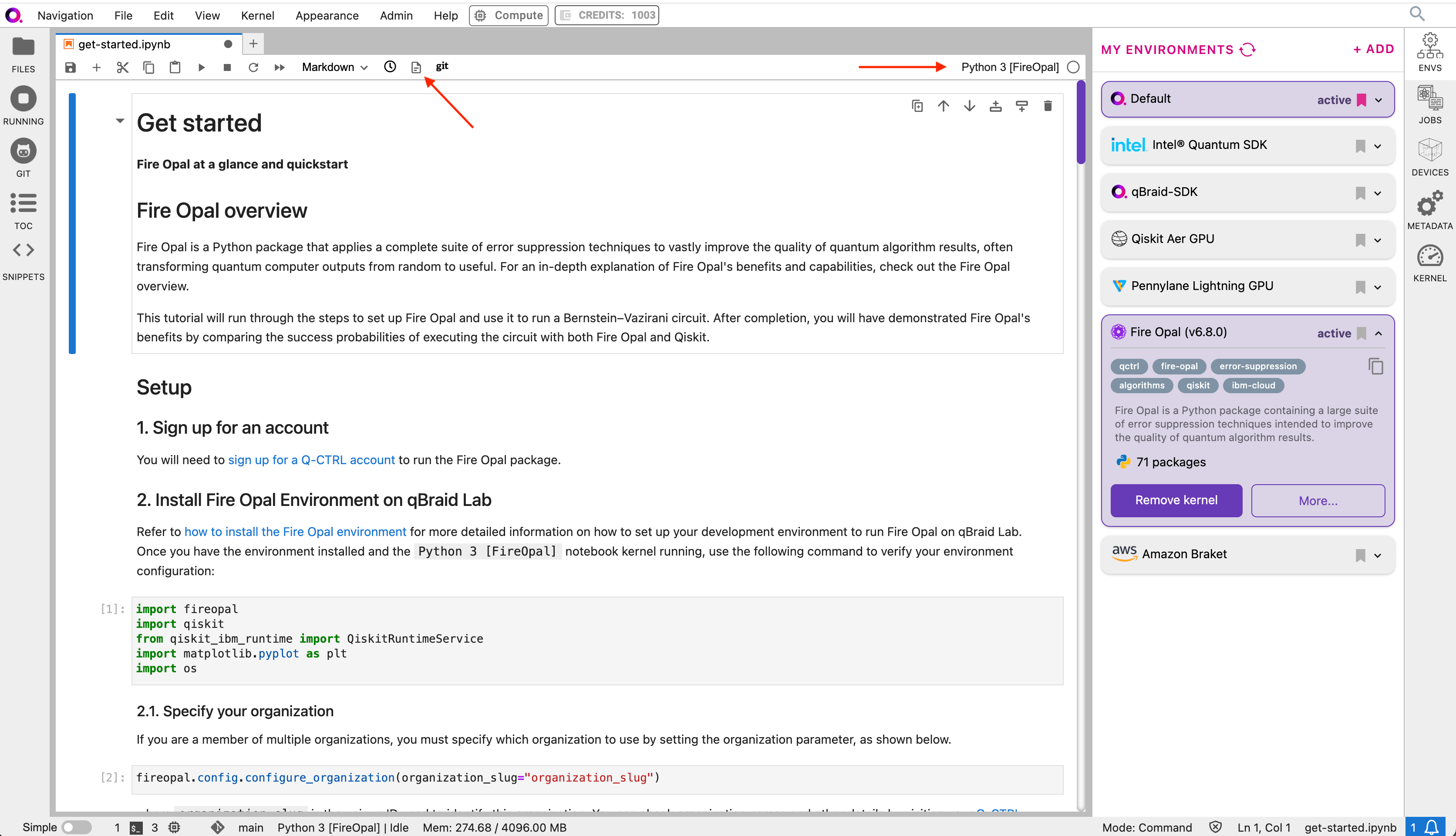

When you have the Fire Opal kernel selected, clicking the docs link in the notebook top-bar will take you directly to the Fire Opal documentation page in a new tab.
fire opal notebook
2f. You are now ready to use Fire Opal in the qBraid Lab environment! Finish setup by configuring your Q-CTRL organization and IBM Cloud credentials, and then follow the tutorial below to run a Bernstein-Vazirani circuit.

​
3. Specify your Q-CTRL organization

If you are a member of multiple organizations, you must specify which organization to use by setting the organization parameter, as shown below.
fireopal.config.configure_organization(organization_slug="organization_slug")
where organization_slug is the unique ID used to identify this organization. You can check organization names and other details by visiting your Q-CTRL account.

​
4. Sign up for an IBM Cloud account

While Fire Opal’s technology is inherently backend agnostic, in this tutorial we will run the circuit on an IBM Quantum backend device. You will need to sign up for an IBM Quantum account, which you can use to access devices on the Open or Premium IBM Quantum plans. Simply input your hub, group, project, and access token to the make_credentials_for_ibm_cloud function.
IBM Quantum offers public access to some of their quantum computers. However, queue times for public systems can be long, which will cause delays in the execution steps of this guide (demo steps 5 and 7). These delays are extraneous to Fire Opal.

​
Demo: Running the Bernstein-Vazirani algorithm with Fire Opal

We’ll use Fire Opal to run a Bernstein-Vazirani circuit. This algorithm is broadly used to find a string from the outputs of a black box function, though this information is not necessary for the sake of running this example.

​
1. Define helper functions

  • draw_circuit: draws our QASM circuit
  • plot_bv_results: plots the results of our experiments
shot_count = 2048

def draw_circuit(qasm_str: str):
      """Draws a QASM circuit."""
      circuit = qiskit.QuantumCircuit.from_qasm_str(qasm_str)
      display(circuit.draw(fold=-1))


def plot_bv_results(results, hidden_string, title=""):
      """Plot a probability histogram and highlight the hidden string."""
      bitstrings = sorted(results.keys())

      def to_probability(value, total):
         if isinstance(value, float):
            return value
         return value / total

      probabilities = [to_probability(results[b], shot_count) for b in bitstrings]
      plt.figure(figsize=(50, 5))
      bars = plt.bar(bitstrings, probabilities)
      plt.xticks(rotation=90)

      for index, bitstring in enumerate(bitstrings):
         if bitstring != hidden_string:
            bars[index].set_color("grey")

      plt.ylabel("Probability")
      plt.ylim([0, 1])
      plt.title(title)
      plt.show()

​
2. Provider the quantum circuit

Here, we will define the Bernstein-Vazirani circuit as an OpenQASM string and visualize it using our previously defined helper function draw_circuit. Such a string can also be generated by exporting a quantum circuit written with any quantum-specific Python library.
circuit_qasm = """OPENQASM 2.0;
include "qelib1.inc";
qreg q[12];
creg c[11];
x q[11];
h q[0];
h q[1];
h q[2];
h q[3];
h q[4];
h q[5];
h q[6];
h q[7];
h q[8];
h q[9];
h q[10];
h q[11];
barrier q[0],q[1],q[2],q[3],q[4],q[5],q[6],q[7],q[8],q[9],q[10],q[11];
cx q[0],q[11];
cx q[1],q[11];
cx q[2],q[11];
cx q[3],q[11];
cx q[4],q[11];
cx q[5],q[11];
cx q[6],q[11];
cx q[7],q[11];
cx q[8],q[11];
cx q[9],q[11];
cx q[10],q[11];
barrier q[0],q[1],q[2],q[3],q[4],q[5],q[6],q[7],q[8],q[9],q[10],q[11];
h q[0];
h q[1];
h q[2];
h q[3];
h q[4];
h q[5];
h q[6];
h q[7];
h q[8];
h q[9];
h q[10];
h q[11];
barrier q[0],q[1],q[2],q[3],q[4],q[5],q[6],q[7],q[8],q[9],q[10],q[11];
measure q[0] -> c[0];
measure q[1] -> c[1];
measure q[2] -> c[2];
measure q[3] -> c[3];
measure q[4] -> c[4];
measure q[5] -> c[5];
measure q[6] -> c[6];
measure q[7] -> c[7];
measure q[8] -> c[8];
measure q[9] -> c[9];
measure q[10] -> c[10];
"""
draw_circuit(circuit_qasm)

      ┌───┐      ░                                                         ░ ┌───┐ ░ ┌─┐
 q_0: ┤ H ├──────░───■─────────────────────────────────────────────────────░─┤ H ├─░─┤M├──────────────────────────────
      ├───┤      ░   │                                                     ░ ├───┤ ░ └╥┘┌─┐
 q_1: ┤ H ├──────░───┼────■────────────────────────────────────────────────░─┤ H ├─░──╫─┤M├───────────────────────────
      ├───┤      ░   │    │                                                ░ ├───┤ ░  ║ └╥┘┌─┐
 q_2: ┤ H ├──────░───┼────┼────■───────────────────────────────────────────░─┤ H ├─░──╫──╫─┤M├────────────────────────
      ├───┤      ░   │    │    │                                           ░ ├───┤ ░  ║  ║ └╥┘┌─┐
 q_3: ┤ H ├──────░───┼────┼────┼────■──────────────────────────────────────░─┤ H ├─░──╫──╫──╫─┤M├─────────────────────
      ├───┤      ░   │    │    │    │                                      ░ ├───┤ ░  ║  ║  ║ └╥┘┌─┐
 q_4: ┤ H ├──────░───┼────┼────┼────┼────■─────────────────────────────────░─┤ H ├─░──╫──╫──╫──╫─┤M├──────────────────
      ├───┤      ░   │    │    │    │    │                                 ░ ├───┤ ░  ║  ║  ║  ║ └╥┘┌─┐
 q_5: ┤ H ├──────░───┼────┼────┼────┼────┼────■────────────────────────────░─┤ H ├─░──╫──╫──╫──╫──╫─┤M├───────────────
      ├───┤      ░   │    │    │    │    │    │                            ░ ├───┤ ░  ║  ║  ║  ║  ║ └╥┘┌─┐
 q_6: ┤ H ├──────░───┼────┼────┼────┼────┼────┼────■───────────────────────░─┤ H ├─░──╫──╫──╫──╫──╫──╫─┤M├────────────
      ├───┤      ░   │    │    │    │    │    │    │                       ░ ├───┤ ░  ║  ║  ║  ║  ║  ║ └╥┘┌─┐
 q_7: ┤ H ├──────░───┼────┼────┼────┼────┼────┼────┼────■──────────────────░─┤ H ├─░──╫──╫──╫──╫──╫──╫──╫─┤M├─────────
      ├───┤      ░   │    │    │    │    │    │    │    │                  ░ ├───┤ ░  ║  ║  ║  ║  ║  ║  ║ └╥┘┌─┐
 q_8: ┤ H ├──────░───┼────┼────┼────┼────┼────┼────┼────┼────■─────────────░─┤ H ├─░──╫──╫──╫──╫──╫──╫──╫──╫─┤M├──────
      ├───┤      ░   │    │    │    │    │    │    │    │    │             ░ ├───┤ ░  ║  ║  ║  ║  ║  ║  ║  ║ └╥┘┌─┐
 q_9: ┤ H ├──────░───┼────┼────┼────┼────┼────┼────┼────┼────┼────■────────░─┤ H ├─░──╫──╫──╫──╫──╫──╫──╫──╫──╫─┤M├───
      ├───┤      ░   │    │    │    │    │    │    │    │    │    │        ░ ├───┤ ░  ║  ║  ║  ║  ║  ║  ║  ║  ║ └╥┘┌─┐
q_10: ┤ H ├──────░───┼────┼────┼────┼────┼────┼────┼────┼────┼────┼────■───░─┤ H ├─░──╫──╫──╫──╫──╫──╫──╫──╫──╫──╫─┤M├
      ├───┤┌───┐ ░ ┌─┴─┐┌─┴─┐┌─┴─┐┌─┴─┐┌─┴─┐┌─┴─┐┌─┴─┐┌─┴─┐┌─┴─┐┌─┴─┐┌─┴─┐ ░ ├───┤ ░  ║  ║  ║  ║  ║  ║  ║  ║  ║  ║ └╥┘
q_11: ┤ X ├┤ H ├─░─┤ X ├┤ X ├┤ X ├┤ X ├┤ X ├┤ X ├┤ X ├┤ X ├┤ X ├┤ X ├┤ X ├─░─┤ H ├─░──╫──╫──╫──╫──╫──╫──╫──╫──╫──╫──╫─
      └───┘└───┘ ░ └───┘└───┘└───┘└───┘└───┘└───┘└───┘└───┘└───┘└───┘└───┘ ░ └───┘ ░  ║  ║  ║  ║  ║  ║  ║  ║  ║  ║  ║
c: 11/════════════════════════════════════════════════════════════════════════════════╩══╩══╩══╩══╩══╩══╩══╩══╩══╩══╩═
                                                                                      0  1  2  3  4  5  6  7  8  9  10

​
3. Provide your device information and credentials

Next, we’ll provide device information for the real hardware backend. Fire Opal will execute the circuit on the backend on your behalf, and it is designed to work seamlessly across multiple backend providers. For this example, we will use an IBM Quantum hardware device. Note that the code below requires your IBM Quantum API token. Visit IBM Quantum to sign up for an account and obtain your access credentials.
# These are the properties for the publicly available provider for IBM backends.
# If you have access to a private provider and wish to use it, replace these values.
hub = "ibm-q"
group = "open"
project = "main"
token = "YOUR_IBM_TOKEN"
credentials = fireopal.credentials.make_credentials_for_ibmq(
      token=token, hub=hub, group=group, project=project
)

QiskitRuntimeService.save_account(
      token, instance=hub + "/" + group + "/" + project, overwrite=True
)
service = QiskitRuntimeService()
Next we will use the function show_supported_devices to list the devices that are both supported by Fire Opal and accessible to you when using the credentials above.
supported_devices = fireopal.show_supported_devices(credentials=credentials)[
      "supported_devices"
]
for name in supported_devices:
      print(name)
From the resulting list, you can choose a backend device and replace "desired_backend". The list will only include devices accessible to you.
# Enter your desired IBM backend here or select one with a small queue
backend_name = "desired_backend"
print(f"Will run on backend: {backend_name}")

​
4. Validate the circuit and backend

Now that we have defined our credentials and are able to select a device we wish to use, we can validate that Fire Opal can compile our circuit, and that it’s compatible with the indicated backend.
validate_results = fireopal.validate(
      circuits=[circuit_qasm], credentials=credentials, backend_name=backend_name
)

if validate_results["results"] == []:
      print("No errors found.")
else:
      print("The following errors were found:")
      for error in validate_results["results"]:
         print(error)
In this previous example, the output should be an empty list since there are no errors in the circuit, i.e. validate_results["results"] == []. Note that the length of the validate_results list is the total number of errors present across all circuits in a batch. Since our circuit is error free, we can execute our circuit on real hardware.

​
5. Execute the circuit using Fire Opal

In the absence of hardware noise, only a single experiment would be required to obtain the correct hidden string: 111 111 111 11. However in real quantum hardware, noise disturbs the state of the system and degrades performance, decreasing the probability of obtaining the correct answer for any single experiment. Fire Opal automates the adjustments made by experts when running circuits on a real device.
Once jobs are submitted, there may be a delay in returning results due to the hardware provider’s queue. You can view and retrieve results later. Be sure to let your jobs finish executing, and do not cancel the process. Even in the case of kernel disconnection, the job will still complete, and results can later be retrieved.
print(
      "Submitted the circuit to IBM. Note: there may be a delay in getting results due to IBM "
      "device queues. Check the status through instructions at "
      "https://cloud.ibm.com/docs/quantum-computing?topic=quantum-computing-results."
)
real_hardware_results = fireopal.execute(
      circuits=[circuit_qasm],
      shot_count=shot_count,
      credentials=credentials,
      backend_name=backend_name,
)

bitstring_results = real_hardware_results["results"]

​
6. Analyze Results

Now you can look at the outputs from the quantum circuit executions. The success probability is simply the number of times the hidden string was obtained out of the total number of circuit shots. For reference, running this circuit on a real device without Fire Opal typically has a success probability of 2-3%. As you can see, Fire Opal greatly improved the success probability.
print(f"Success probability: {100 * bitstring_results[0]['11111111111']:.2f}%")
# Success probability: 55.19%

plot_bv_results(
      bitstring_results[0], hidden_string="11111111111", title=f"Fire Opal ($n=11$)"
)

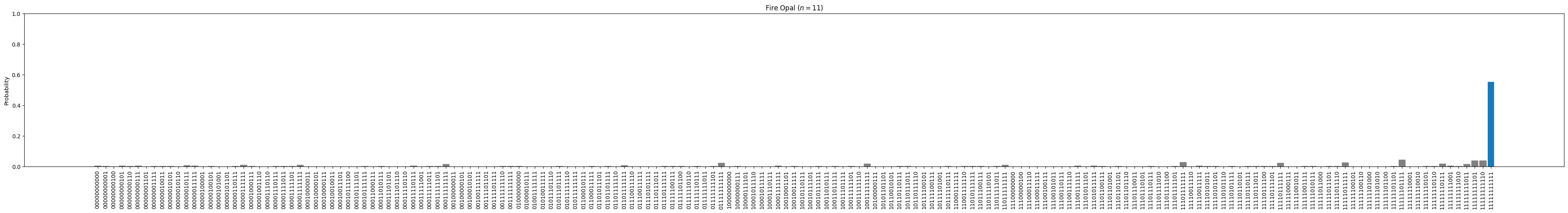

fire opal plot 0

​
7. Compare Fire Opal Results with Qiskit

To get a true comparison, let’s run the same circuit without Fire Opal. We’ll run the circuit using Qiskit on the same IBM backend as used previously to get a one-to-one comparison.
from qiskit_ibm_runtime import Sampler, Options

backend = service.backend(backend_name)
options = Options()
options.execution.shots = shot_count
sampler = Sampler(backend=backend, options=options)

circuit_qiskit = qiskit.QuantumCircuit.from_qasm_str(circuit_qasm)
ibm_result = sampler.run(circuit_qiskit).result()
ibm_probabilities = (
      ibm_result.quasi_dists[0]
      .nearest_probability_distribution()
      .binary_probabilities(num_bits=11)
)

print(f"Success probability: {100 * ibm_probabilities['11111111111']:.2f}%")
# Success probability: 2.78%

plot_bv_results(
      ibm_probabilities, hidden_string="11111111111", title=f"{backend_name} ($n=11$)"
)

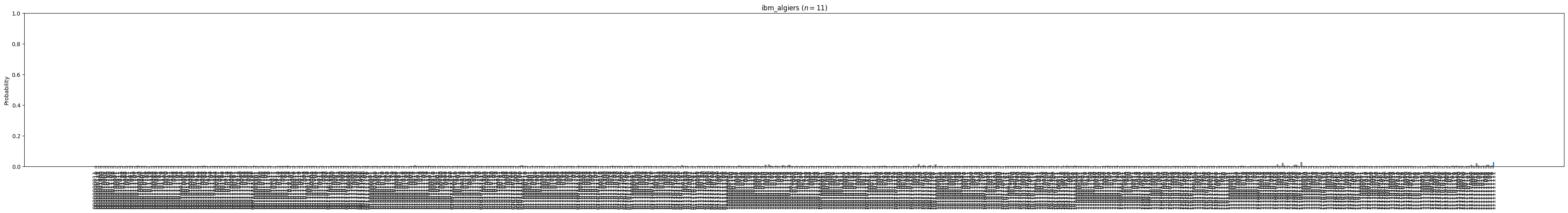

fire opal plot 1
The above results demonstrate that noise has severely impacted the probability of obtaining the correct hidden string as the output. In this case, the string returned with the greatest frequency by the quantum computer was not the expected 111 111 111 11 state. We should also take note of the amount of incorrect states that now contain non-zero return probabilities. Not only do default configurations fail to find the correct answer, they also increase the probabilities of the incorrect answers. In fact, the performance degradation is so severe that in order to be reasonably sure of the hidden string, using the original classical algorithm would be more efficient. You can tell that Fire Opal found the correct answer because the mode of the output distribution, or the most frequent outcome, matches the desired output: bitstring 111 111 111 11. Fire Opal significantly improves the probability of a successful outcome, often by a factor of ten or more.
fire_opal_success = bitstring_results[0]["11111111111"]
ibm_success = ibm_probabilities["11111111111"]
factor = int(fire_opal_success / ibm_success)
print(f"Fire Opal improved success probability by a factor of {factor}!")
# Fire Opal improved success probability by a factor of 19!
Congratulations! You’ve run your first algorithm with Fire Opal and demonstrated its ability in transforming a device which finds the incorrect answer by default, to a device that finds the correct answer.
Fire Opal Documentation

​
Integrated Fire Opal Documentation

From launcher, click the Quantum Docs icon under “Other” to open the qBraid Quantum Docs extension. In this extension contains links to software documentation across quantum computing ecosystem, including a dedicated page for Q-CTRL:
qctrl docs
